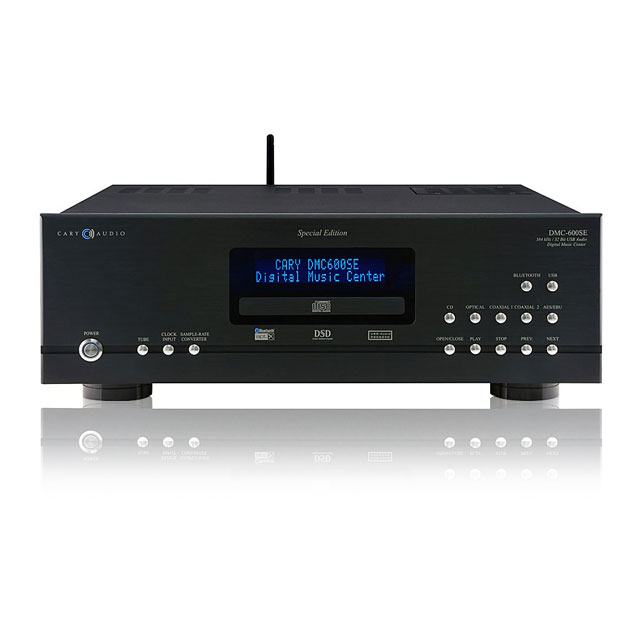

Đầu đĩa CD Cary Audio DMC-600SE
8,083 ₫
còn 1 hàng
- Mô tả
- Đánh giá (0)
Mô tả
Mô tả sản phẩm
Differentiating it from the DMC-600, the DMC-600SE utilizes super premium reference grade components within the analog output sections for further performance enhancements as well as a clock input for use with an external master clock for recording studios and professional or semi-professional use.
The following section describes the DMC-600SE basic specifications. The specifications are subject to change without notice or obligation.
| CD Mechanism | Triple-beam laser, multi-speed CD transport |
| Formats | CD AUDIO (CD-DA), CD-R, CD-RW |
| Master Clock Jitter | Below measurable levels |
| Digital Sampling Rates (Fs) | 44.1kHz to 768kHz |
| Digital Filter | 8x Oversampling Digital Filter |
| Digital/Analog Converters | (1) 4 channel AK4495EQ and (2) 2 channel AK4490EQ for true balanced and single ended outputs |
| BLUETOOTH | CSR bluetooth v 4.0 with aptX low latency audio decoder |
| Analog Filter | 3rd Order Bessel |
| Analog Outputs | Balanced XLR , Single – Ended RCA |
| Digital Outputs | Coaxial, Toslink operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit |
| Digital Inputs | USB x 1 (PC & MAC) BLUETOOTH x1 AES/EBU x1, Coaxial x2, Toslink x1 Master Clock Loop x1 |
| Digital Input Sample Rate | USB: operating Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, DSD 128 and DSD 256 BLUETOOTH: Sample Frequency (Fs) 44.1 kHz, 16 bit AES/EBU, Coaxial, Toslink: operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit |
| Tube Compliment | 12au7 x 2 |
| Control | Trigger input 12VDC x1 IR control x1 |
| Communication | RS232 full remote configuration interface |
| Power Input | Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz |
| Power Consumption | 86 Watts |
| Finish | Silver Anodized Aluminum Faceplate, Jaguar Anthracite Black steel chassis |
| Weight | 35 lbs |
| Dimensions | 5.25″ H x 17.25″ W x 16.25 ” D |
AUDIO (CD)
| Frequency Range | 2 Hz – 22 kHz (44.1 kHz) |
| Amplitude Linearity | 0.1 dB (20 Hz – 20 kHz) |
| Phase Linearity | 3 degrees (20 Hz – 20 kHz) |
| Dynamic Range | 121 dB (1 kHz) |
| Signal to Noise Ratio | 113 dB (1 kHz) |
| Channel Separation | 106 dB (1 kHz) |
| Total Harmonic Distortion | 0.0004% (1 kHz) |
| Audio Output Level | 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB 3.0V RMS (220 Ω output impedance) for Volume in +8.0dB |
| Balanced XLR Output | +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB |
PC-USB Playback (PCM & DSD)
| Frequency Range | 2 Hz – 100 kHz |
| Signal System | 16, 20, 24, & 32 bit PCM and 1 bit DSD |
| Sampling Frequency | 44.1 kHz to 384 kHz PCM and 2.822MHz – 11.288 MHz DSD |
| Dynamic Range | 123 dB |
| DSD System Clock | Frequency 22.5792 MHz |
| Signal to Noise Ratio | 112 dB |
| Audio Output Level | 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB 3.0V RMS (220 Ω output impedance) for Volume in+8.0dB |
| Balanced XLR Output | +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB |
SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (PCM)
| Frequency Range | 2 Hz – 100 kHz |
| Signal System | 16, 20, and 24 bit |
| Sampling Frequency | 44.1 kHz to 192 kHz PCM |
| Dynamic Range | 123 dB |
| DSD System Clock | Frequency 22.5792 MHz or 24.576 MHz |
| Signal to Noise Ratio | 112 dB |
| Audio Output Level | 2.0V RMS (220 Ω output impedance) for Volume in 0.0dB 3.0V RMS (220 Ω output impedance) for Volume in+8.0dB |
| Balanced XLR Output | +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB +/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB |
