The SI-300.2d mates a Class AB 300 watts x 2 power amplifier with analog RCA and XLR inputs and an analog preamplifier gain stage. The digital sections are a chip off our reference products thereby including only the best digital circuit topology, digital to analog conversion process, and technology like our proprietary TruBit© Upsampling feature. Inputs include (4) – Line level inputs (2-balanced XLR, 2-RCA), Cinema Bypass, XMOS USB, Coaxial (2), Optical, AES/EBU, and aptX® Bluetooth. All SPDIF and Bluetooth digital sources allow for selectable digital upsampling including 44.1, 48, 88.2, 96, 176.4, 192, 384, 768. XMOS USB input allows for native 32 Bit /384kHz playback and DSD 64, 128, and 256 music.

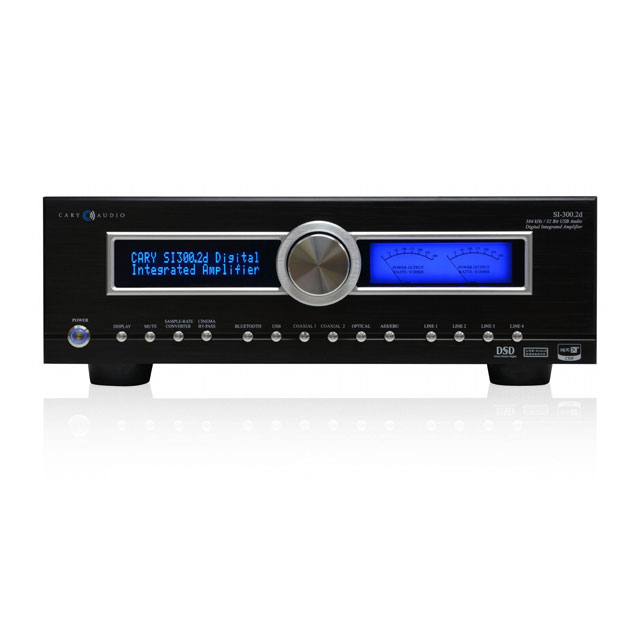

The powerful solid state class AB 300 watt x 2 stereo power amplifier ensures even the most difficult of loads are tamed while delivering Cary Audio’s famous tube like sound. A pair of analog “Cary Blue” meters on the right side show the power being delivered while the left side displays all source information. The handsome center mounted volume control and frame make for a spectacular unit that is just as enjoyable to look at as it is to listen to.

Includes a pre/subwoofer output, coaxial and optical digital outputs, IR hand held remote, Trigger out, IR sensor input, and Ethernet and Wi-Fi for controlling the SI-300.2d with free iOS and Android apps.

Thông số kỹ thuật:

• Digital Outputs: Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit
• Digital Input: Sample Rates USB operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, DSD 128 and DSD 256 BLUETOOTH operating at Sample Frequency (Fs) 44.1 kHz, 16 bit AES/EBU, Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit
• Master Clock Jitter: Below measurable levels
• Digital Sampling Rates (Fs) 44.1 kHz to 768 kHz
• Digital Filter 8x Oversampling
• Digital Filter Digital/Analog Converters 2 channel AK4490EQ
• Bluetooth CSR Bluetooth v 4.0 with aptX® low latency audio decoder
• Analog Filter 3rd Order Bessel
• Preamplifier Outputs Balanced XLR , Single – Ended RCA
• Analog Input Single-Ended RCA x 2 Balanced XLR x 2
• Analog Input Impedance 10 kΩ Unbalanced 20 kΩ Balanced
• Power Amplifier Outputs 2 x 300W RMS in 8 Ω from 20Hz to 20KHz 2 x 450W RMS in 4 Ω from 20Hz to 20KHz
• Circuit Type Solid State, Class A/B
• Frequency Response 10Hz – 50KHz +/- 0.1dB (at 10db below rated output power)
• Distortion (SMPTE-1M) < 0.5%
• S/N Ratio >100dB, “A” Weighted
• Protections Full short circuit, thermal, Ultrasonic, RF Signal muting & current limiter
• Control Trigger output 12.0 VDC x 1 IR control x 1
• Communication Ethernet RJ45 full remote configuration interface Wi-Fi 802.11 b/g/n
• Power Input Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
• Power Consumption 950 Watts (4 ohm load at full output)
• Finish Black powder coated matte cabinet with silver anodized aluminum faceplate standard (black optional)
• Weight 52 lbs
• Dimensions 6.0″ H x 17.25″ W x 18.0 ” D
