BPS là một chiếc Phono cực kỳ nhỏ gọn, chạy bằng pin và sử dụng công nghệ bóng bán dẫn tuy nhiên vẫn giữ được chất lượng và chất âm truyền thống của Nagra.
BPS hoạt động với những cơ đĩa than sử dụng cartridges moving magnet (MM) và moving coil (MC).

Danh mục: ,
  • Mô tả
  • Đánh giá (0)

Mô tả

Electronic design concept

The BPS electronics consume so little power that they are driven from a single 9-volt battery giving an autonomy of about 100 hours. Assembled on a single motherboard, the electronics use discrete military-specification components. The amplification is provided by individually selected and matched bipolar transistors. The capacitors in the signal path are of audiophile quality and the precision resistors are MELF (Metal Electrode Leadless Face).

The MC input transformers are designed and wound, in-house, by Nagra, benefitting from our unique know-how in this domain coming from the highly demanding field of microphone inputs on professional recorders. The case is made of top quality aluminium which is in turn brushed to give the finish to match all other products in the range in the usual Nagra style.

Adaptive loading circuits

Taken from the concept of the VPS, the BPS also uses adaptive loading circuits built onto small additional boards, that can be inserted.  Six of these circuits are delivered with the unit, allowing the input impedance of the BPS to be altered to match virtually any phono cartridge.

Compact size

Its very compact size reduces the cartridge cable length to a minimum, thus reducing the risk of interference through this very sensitive link.



Frequency response: 20 Hz (+1dB) at 30 kHz (0dB) RIAA conform
Harmonic distortion: < 0,15%
Signal-to-noise ratio: > 77 dB (ASA A)
Channel separation: Typically 60 dB
Input circuit load: 47 kΩ without load module installed
Loading modules: 6 modules supplied (100, 150, 220, 330, 470 Ω and 1kΩ)
Transformer gain: (MC input) Ratio 1:3.54 (+11 dB)
RIAA stage gain: 53 dB
Total gain: 64 dB, switchable to 49 dB with internal jumpers
Output level: 2 V
Correction norm: RIAA 1953
Power consumption: 70 mW
Power supply: 1 battery 9 V type 6LR61 (PP3)
Estimated battery life: Approx. 100 hours

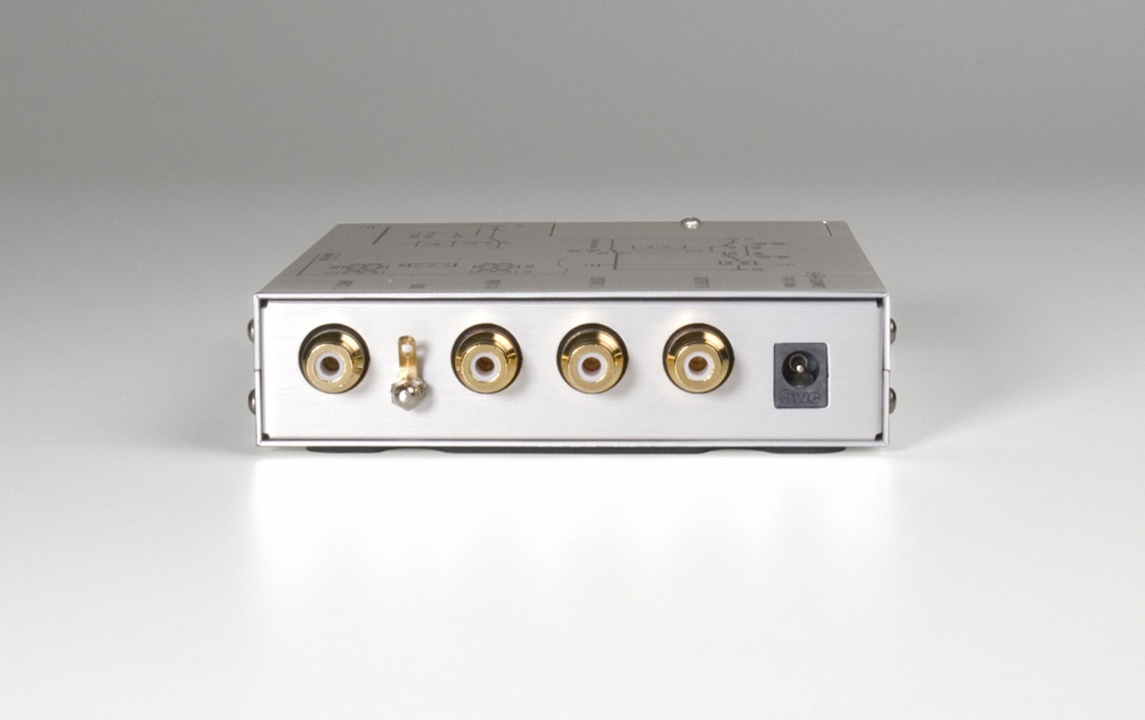

Input connections: RCA-Cinch (gold-plated)
Output connections: RCA-Cinch (gold-plated)
Weight: 480 g (16.9 oz)
Dimensions: (L x D x H) 110 x 27 x 160 mm (4¼ x 9∕16 x 6¼ inches)
