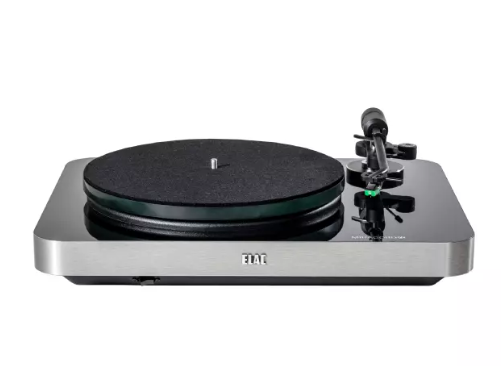

ELAC Miracord 70 – the next stage of the vinyl comeback. The new Miracord 70 sees ELAC expand its turntable offering and embark on the next stage of its successful return to the world of vinyl.

The solid MDF plinth with a high-gloss black finish provides a strong foundation. A belt-driven sub-platter, powered by an extremely smooth synchronous motor by Premotec, supports the 2.6 kg platter made of glass.

  • Mô tả
  • Đánh giá (0)

Mô tả

A black ceramic coating on the underside of the platter gives it a dark translucent appearance that accentuates its three-dimensional form.

Combined with a point mounting system that uses a ceramic ball as a central element, like the one on the Miracord 90, the overall structure ensures exceptionally smooth running and outstanding immunity to external influences.

Thông số kỹ thuật Miracord 70:
Height x Width x Depth: 140 x 465 x 365 mm
Weight: 11 Kg
Cartridge: AT95E by audio-technica®
Frequency range: 20 Hz – 20 kHz
Tracking force: 2,0 ± 0,5 g, 20 ± 5 mN
DC resistance: 400 ohms ± 20 %
Coil impendance: 1 kohms ± 20 % at 1 kHz
Recommended Load: 47 kohms
Output voltage: 3,5 mV
Channel separation: > 20 dB
Selectable speeds: 33 – 45 U/min
Outputs: 2 goldplated RCA connectors, gold-plated ground connector
Power supply: 24 V AC, 6 VA
Finishes: Black High Gloss Decor
